Processing

HAVFRONT LOPPA 100 heading and gutting

Key Information

Weight 200 kg / 440 lbs
Power Supply Hydraulic
Lenght 100 cm
Width 50 cm
Height 120 cm
Electric control cabinet: 24VDC

The world’s most compact machine designed for heading and gutting fish onboard fishing vessels, enhancing productivity and reducing the crew’s need for strenuous manual labor.

Key Features

Type of fish cod, saithe, tusk, ling, haddock etc.
Capasity 20 fish pr. min
Fish size 1 - 12 kg
Operator 1 person
Pre-treatment throat cutting

Product Information

The HAVFRONT Loppa 100 is the world’s most compact machine specifically designed for heading and gutting fish onboard vessels. This innovative and user-friendly machine enhances the efficiency of fish processing, making it an ideal solution for coastal fishing vessels from 9 meters, as well as larger sea-going vessels. Designed to handle mixed whitefish, the Loppa 100 is a reliable, efficient alternative to manual gutting and heading.

Capable of processing fish weighing between 1 and 12 kilograms the Loppa 100 offers a simple yet robust design, perfect for vessels looking to improve workflow and reduce labor-intensive tasks. The machine allows for quick and precise fish positioning, belly down between centering plates, with the bleed cut aligned over the transverse shaft. The cycle is activated by the user, during which the fish is headed and gutted. There is stepless adjustment for the heading angle and the length of the gut cut.

The HAVFRONT Loppa 100 is highly efficient, low-maintenance, and designed for long-lasting use, making it a cost-effective investment for vessels focused on improving productivity while minimizing manual labor.

Click for PDF product details

by Gro Fjeld

HAVFRONT LOPPA 200 heading and gutting

Key Information

Weight 200 kg / 440 lbs
Power Supply Hydraulic
Lenght 100 cm
Width 50 cm
Height 120 cm
Electric control cabinet: 24VDC

Processing

The Loppa 200 is designed for land-based facilities to improve efficiency and reduce the resource-intensive work of gutting and heading whitefish.

Key Features

Type of fish cod, saithe, tusk, ling, haddock etc.
Capasity 20 fish pr. min
Fish size 1 - 12 kg
Operator 1 person
Pre-treatment throat cutting and bleeding

Product Information

HAVFRONT Loppa 200 is one of the worlds smallest machines for heading and gutting of fish.

The robust and user-friendly machine is designed for small and medium-sized fish processing facilities seeking to improve efficiency and reduce the resource-intensive work of gutting and heading whitefish.

The fish is easily positioned belly down between the centering plates, with the bleed cut aligned over the transverse shaft. The cycle is activated by the user, during which the fish is headed and gutted. There is stepless adjustment for the heading angle and the length of the gut cut. The machine can also save the offal if desired.

The HAVFRONT Loppa 200 processes fish weighing between 1 and 12 kg. This machine is straightforward and highly efficient, requiring minimal maintenance. The Loppa 200 is CE marked and includes the necessary modifications for approved use for land-based Norwegian industry.

Click for PDF product details

by Gro Fjeld

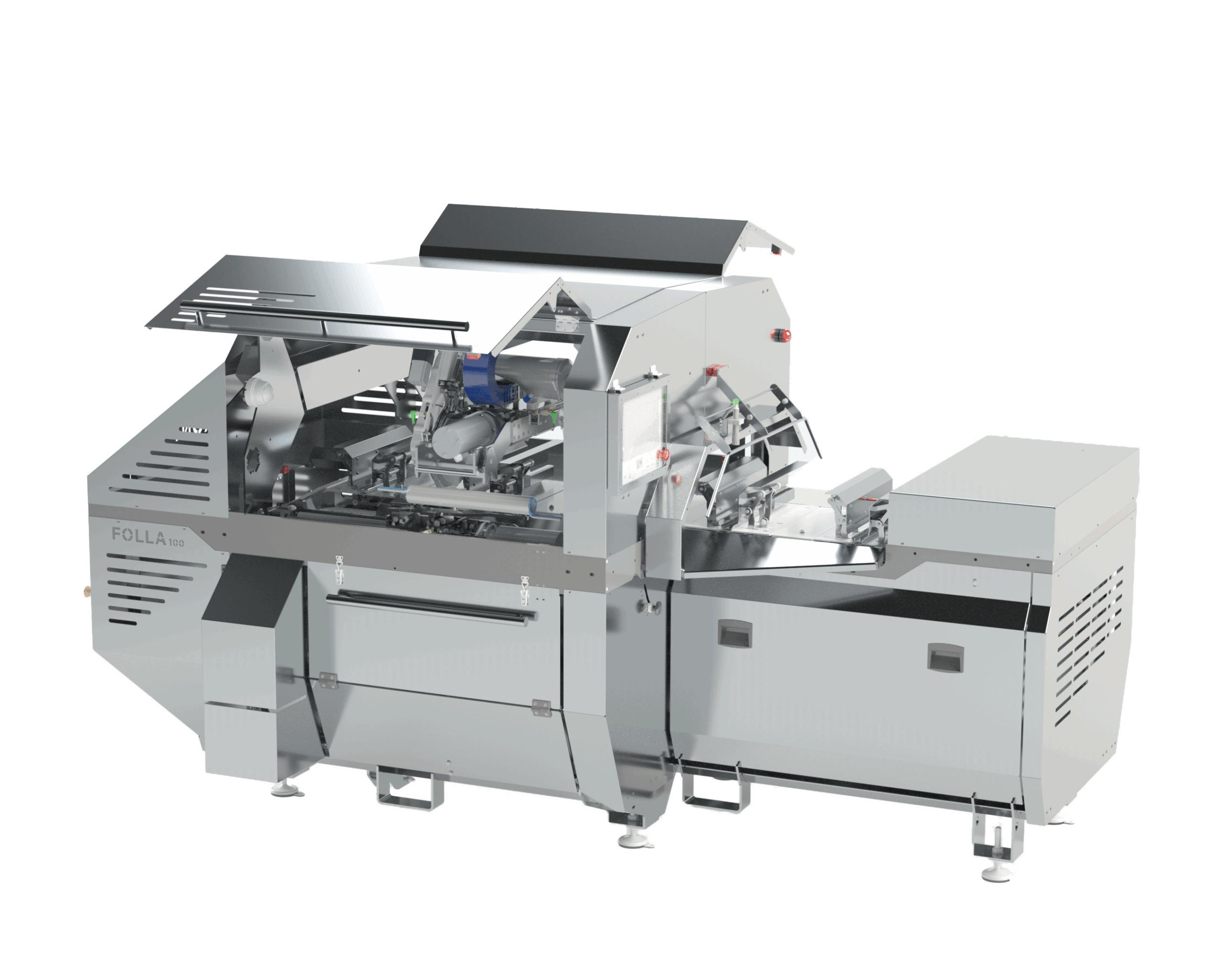

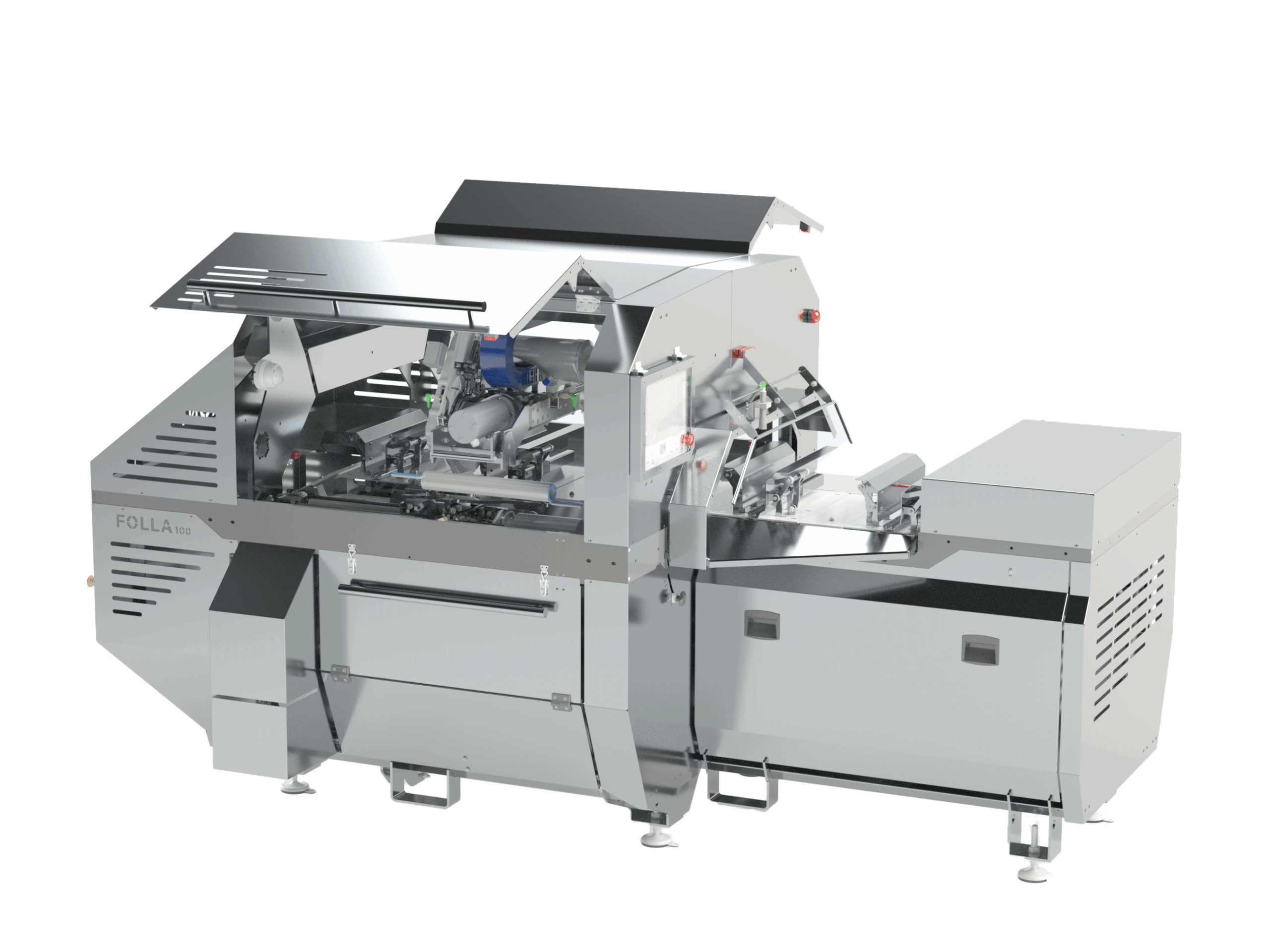

HAVFRONT FOLLA 2.0 - Precision heading and gutting

Processing

Key Features

Adapts to the shape and size of each fish
Precise and uniform cuts
Preserves roe and liver intact
Leaves the collarbone on the trunk
Greatly reduces manual workload
For land- or onboard-based fish processing
Low maintenance cost

Key product information

Fish species Mixed whitefish
Working range 0,5-20 kg/ 40-110 cm (approx.)
Capacity Up to 25 fish pr. min
Operator 1 person
Pre-treatment Deep throat cut
Power Supply Electric 230-480VAC 3-phase / Pneumatic 8 bar
Dimensions L: 320 W: 170 H: 180 cm
Weight 1600 kg/ 3530 lbs

Product Information

Digital automation for land- and onboard precision heading and gutting of fish.

HAVFRONT FOLLA is a fully electric, digitally controlled machine designed for precise, gentle, and efficient heading and gutting of whitefish. Featuring advanced technology, FOLLA 2.0 ensures optimal raw material utilization while preserving roe and liver intact, maximizing product quality and value.

Digital automation – adapts to the size of each fish

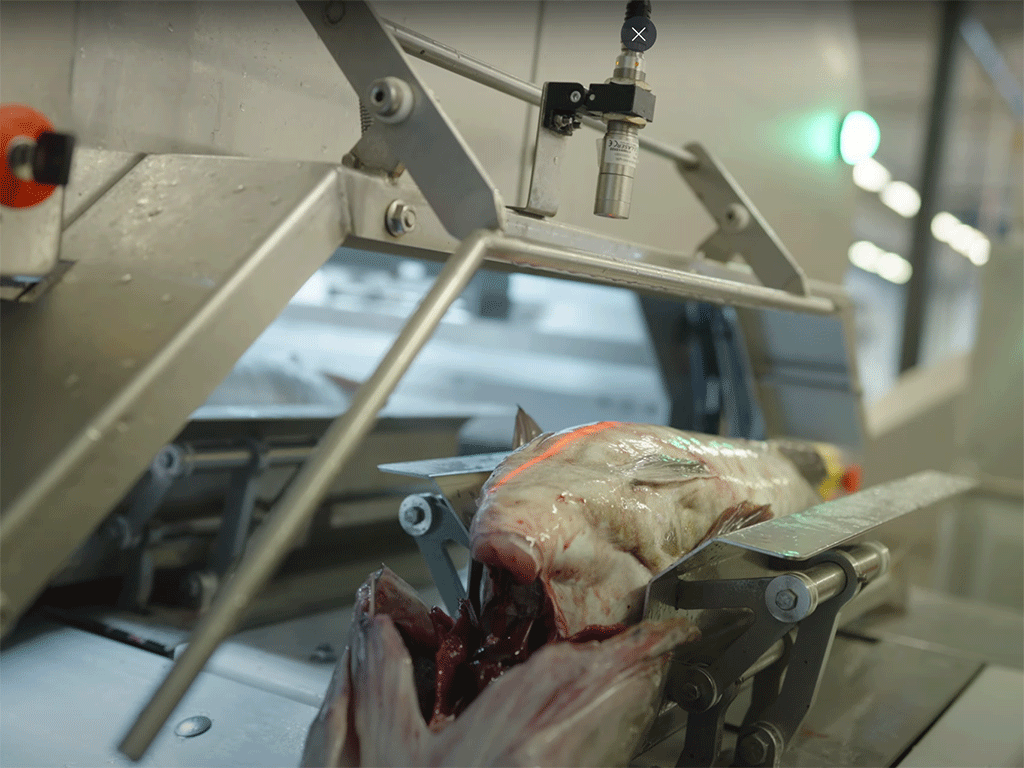

Advanced sensor-based measuring automatically adjusts to each fish’s size, guaranteeing optimal precision for every cut.

Precise and uniform cuts
Delivers consistently accurate cuts that improve product quality and minimize raw material loss.

Preserves roe and liver intact (optional)
Mechanical separation between the knife blade and liver and roe
during belly cutting ensures gentle handling. This preserves valuable raw material and adds value to the final product.

Keeps the collarbone on the trunk
Ideal for processing to saltfish

Increases productivity and reduces manual workload – The machine reduces manual workload with a streamlined infeed system for smooth fish handling and continuous flow. Its ergonomic design and precise tray positioning enhance comfort and efficiency, while cutting repetitive tasks to increase productivity and reduce strain.

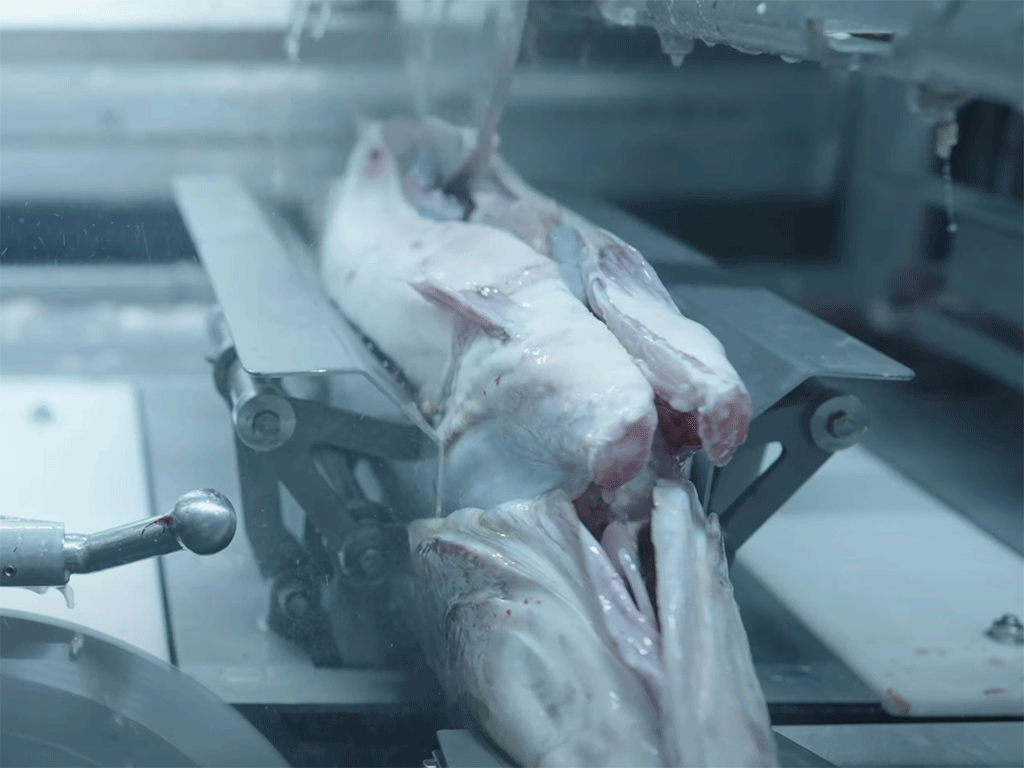

Symmetric belly cut
Produces a clean, symmetric belly cut that enhances product presentation and quality.

Head-on gutting is possible
Offers the option of head-on gutting to suit different processing requirements and product specifications.

For land-based or onboard-based processing of fish
Built for flexibility, the machine performs reliably in both land-based facilities and onboard processing environments.

Easy to operate
Designed with intuitive controls for fast setup, minimal training, and smooth daily operation.

Caring for the environment – By using electric-driven motors instead of hydraulic systems, we reduce oil usage and eliminate the risk of contamination, helping protect the marine environment. At the same time, the absence of hydraulic vibrations lowers noise pollution, creating a quieter, safer workspace for the crew also minimizing disturbances to surrounding ecosystems.

FOLLA is configured for the specified fish size and production speed, but proportions and quality (season, catch area, etc.) may affect these figures.

The placement and adaptation of the machine to the production line is carried out by the buyer or personnel chosen by the buyer. We can assist in assessing its placement in the line together with the customer and, if necessary, the line supplier. Our personnel will handle the startup and training of employees as soon as the machine is correctly placed in the gutting line and ready for operation.

Click for PDF product details

Contact us for more information!
